HOME > PRODUCTS > SMD > 1608~3225 MLCC Loading M/C

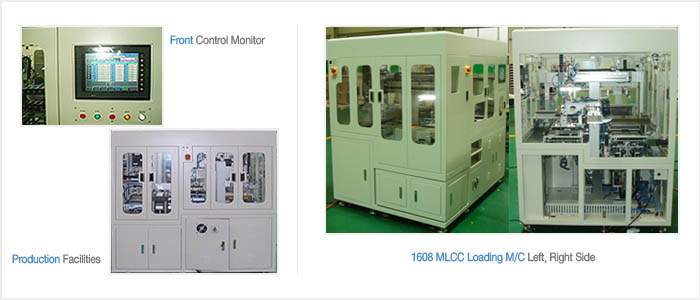

  This equipment is a device to align and insert certain amount of MLCC elements to the dipping process of MLCC

  elements.

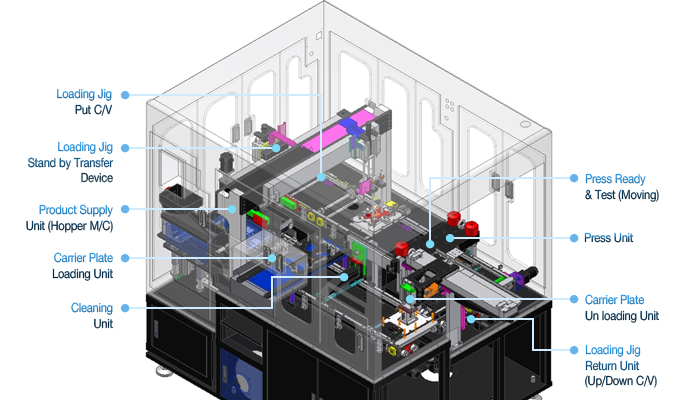

  MLCC elements are aligned by vibration in the alignment device. Using robots and various types of transmitter
  and press devices, it inserts a chip into a carrier plate and transfer it to the dipping process.

   Increasing accuracy of press using a precision
 servo motor

   Fine adjustment is available using a feed controller
 at the product supply part.

   Preventing additional defective proportion by the
 first and second inspection process.

   Adding a blower to remove strange materials
   Using a silicon carrier plate (0.5T)

   Application Chip Size : 1608
   Loading Time : 1 Plate/15sec
   Performance : 2,000,000 EA/Hr
